OEM 50 Amp 3 Phase Contactor 2NC 2NO For Controlling AC Motor Contactor

Product Categories
YueQing ZEYI Electrical Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

OEM 50 Amp 3 Phase Contactor 2NC 2NO For Controlling AC Motor Contactor

  • 1
  • 2
  • 3

Brand Name : YOKG

Model Number : GC-32, GC-40, GC-50~85

Certification : CE,TUV,CB

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T

Supply Ability : 100000pcs per Month

Delivery Time : 15days or Depends on ordering QTYS

Packaging Details : Each unit be packed in one individual inner box

Rated heating current : 50A, 60A, 80A, 100A, 110A, 135A

Auxiliary contact : 2NC+2NO

Type : AC Contactor

Color : White

Certificate : CE, CB, TUV

Frequency : 60/50 Hz

Phase : 3

Application : Controlling AC motor

Number of Poles : 3

Electricity type : AC

Contact Now

CE Approved OEM AC Power Contactor In 3 Phase Contactor

Main parameters and Technical Performance:

Type

GC-32

GC-40

GC-50

GC-65

GC-75

GC-85
Rated heating current (A) 50 60 80 100 110 135
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 2NC+2NO
Short-time withstand current(A) 10S 256 320 400 520 600 680
IEC-60947 AC1 Load 50 60 80 100 110 135
AC3
Load
power		 200～240V 7.5KW 11KW 15KW 18.5KW 22KW 25KW
380～440V 15KW 18.5KW 22KW 30KW 37KW 45KW
500～550V 18.5KW 22KW 30KW 33KW 37KW 45KW
690V 18.5KW 22KW 30KW 33KW 37KW 45KW
AC3
Load
current		 200～240V 32A 40A 55A 65A 75A 85A
380～440V 32A 40A 50A 65A 75A 85A
500～550V 28A 32A 43A 60A 64A 75A
690V 20A 23A 28A 35A 42A 45A
UL508 Continuous current 45A 50A 70A 80A 90A 100A
single-phase
machine		 115V 2HP 3HP 3HP 5HP 5HP 7.5HP
230V 5HP 5HP 7.5HP 10HP 15HP 15HP
Three-phase
machine		 200V 7.5HP 10HP 10HP 15HP 20HP 25HP
230V 10HP 10HP 15HP 20HP 25HP 30HP
460V 20HP 25HP 30HP 40HP 50HP 50HP
575V 20HP 25HP 30HP 40HP 50HP 50HP
Operation frequency (times/h) Electrical life 800 600
Mechanical life 3600
AC-3 Electrical life (10000/times) 80 80 60 60 60 60
Mechanical life (10000/times) 800 800 600 600 600 600

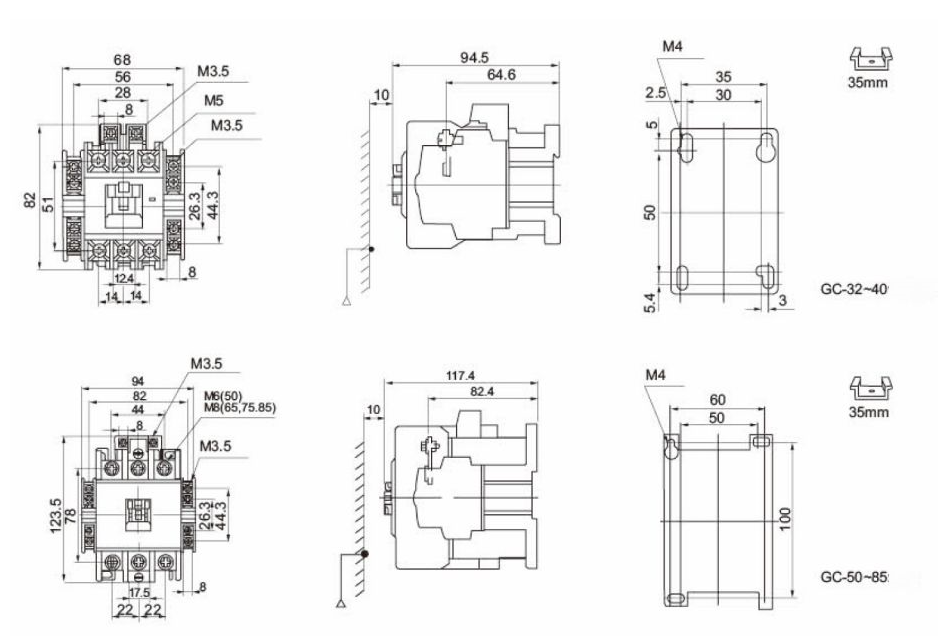

Installation dimension:

OEM 50 Amp 3 Phase Contactor 2NC 2NO For Controlling AC Motor Contactor

Packing and Delivery:

OEM 50 Amp 3 Phase Contactor 2NC 2NO For Controlling AC Motor Contactor

OEM 50 Amp 3 Phase Contactor 2NC 2NO For Controlling AC Motor Contactor

FAQ:

1. Could I have prices of your products?

Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.

2. Can we print our logo/website/company name on products?

Yes, OEM and ODM are available.

3. What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.

4. Do you inspect the finished products?

Our products 100% self-inspection and testing before packing.

5. How about payment terms?

30% deposit, the rest payment balance against B/L copy.
